Back last fall I got back into the RC hobby again with a project build on my first monster truck project that most of you probably remember. While I have not finished that one yet (will this summer) I decided to start another build so I started this build project back at the end of January. The reason I started this one was because the first truck is more of a scale build, something that I will enjoy but won't want to bash/damage because of the detail work in it. So I decided to do a 2nd truck build and build this one with the most durable hardcore bashing parts available on the market today. This one is going to be fast, light, and durable.

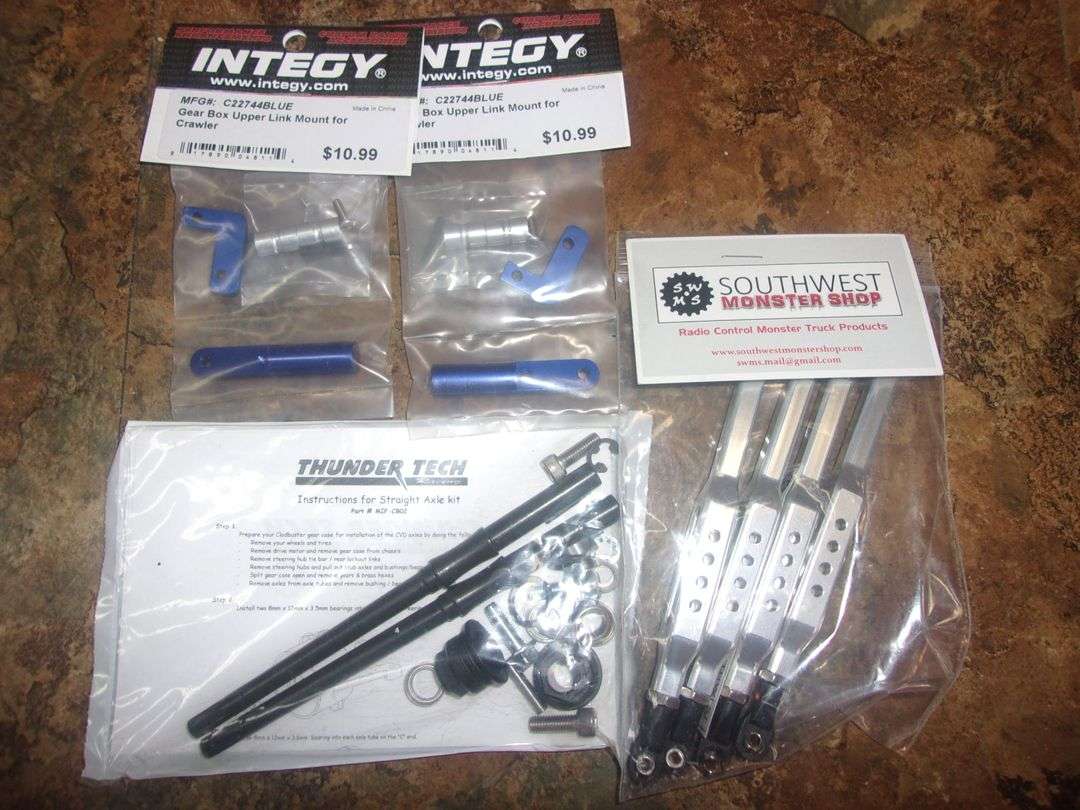

Made the chassis for this one myself out of carbon fiber plate. Upper 4-links I made out of solid aluminum rod drilled & tapped. Lower links are CNC'd pieces. Rather than buy used axles for this one I went ahead and located all the part numbers for all the axles pieces and build the axles myself from the ground up so they are all new. Has full bearing set in the axles, Thundertech CVD's in front and straight solid axle in rear. Went with a Dennis Anderson King Sling body and added the scoop to the front of the body. Put some new Jconcepts tires on some blacked out wheels. Electronics I'm installing are two Castle brushless 5700k sensored motors, two Castle Mamba-x ESC's, and a 3S 5400mah 90c 135a lipo battery.
These are some pics from the past few months. I finished the airbrush work on the body last month and will post a pic of that when I get time. This one should be done and running in the next week or two most likely.











Hot sausage!!!! This will be one well-sprung missile!!!

Sweet build!!!:cool::cool::cool::cool::cool::cool::cool:

All I can say is holy crap! Got all the electronics in it today and used the new Castle-link to hook up the ESC's to my PC so I could adjust all the settings on them. It was dark out so I just put it on the basement shop floor to just see what it had. Merely blipped the throttle and it jumped up in the air like a frog flipping over backwards in the air and landed 6ft away
I believe I will wait till it's light outside to test it out and further. Way to dangerous to mess with inside lol

With everything that went on in my personal life the past few weeks I haven't posted the finished pics of the truck yet. Just trying to force myself to do things to try to get back to somewhat of a normal life again. So here's some pics of the finished truck, it's all done now. I airbrushed the body a nice metallic blue with a waving checkered flag paint scheme. The King Sling body is supposed to have the scoop on the rear of the real truck, but I didn't care for that so moved it to the hood and trimmed it to fit against the windshield. Added some LED red head & taillights as well.

I have yet to get it out and test out full power, but from just testing it after I programmed the dual ESC's I tested it in the backyard and it has just a ridiculous amount of power. Anything more than 1/4 throttle with any sort of traction and it stands right up and jumps off the ground. Going to try to get it out to somewhere that has some ample room this weekend and open it up to see what it will do. Will try to get some action pics or vid of it when I can.













Just doing a little late night testing in the shop. I believe I grabbed a little too much throttle in the 2nd video lol

.

.

.





Maiden shake down run for the most part was a success. Got 30 mins of crazy speed and outside of being on the edge of out of control at full throttle it was a blast. Until the very end when the pitchers mound rubber decided the fun was over. Couple broken rod ends and a pulled apart shock but nothing too major to fix.



All fixed up from yesterdays crash, body mounted and had a blast with it today. Got all the bugs worked out of it and it's running like a champ now. It's a handful but so much fun to bash around with.
